Enclosed Track Cranes 2018-07-17T08:50:24+00:00

Enclosed Track Cranes

Capacities: 250 to 4000 lbs
Bridge Lengths, overall: up to 40’
Runway Spans: up to 40’
Height — Floor-to-Trolley Clevis: 10’, 12’, or 14’ heights are standard

Freestanding Workstation Bridge Cranes often provide a effective in-expensive lifting and moving solution if you are in need of coverage for a large area. With capabilities of spans up to 40-feet wide and unlimited length out interconnected parallel systems can cover your entire facility. If you are rent or lease your building our bolt-together freestanding systems are readily relocated, either within your plant or in an entirely new location. Typically, a standard six-inch thick reinforced concrete floor is all that’s needed for our freestanding workstation bridge cranes for non-seismic applications. In addition to our custom engineered systems, we make pre-engineered systems that include everything but the hoist and anchor bolts. All systems meet or exceed ANSI/ASME B30.11 and ANSI/MMA MH27.2 standards for underhung cranes and monorails.

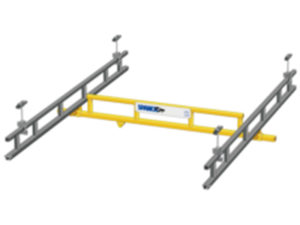

Ceiling Mounted Workstation Crane

Ceiling Mounted Workstation Crane

OPTIONS AND COMPONENTS

  • Telescoping Bridges: Providing extended crane reach, telescoping bridges allowing you to place parts easily into machinery or into a neighboring workstation. Telescopic bridge cranes also enable you to reach beyond a support column or under a mezzanine. Anti-kick-up wheels keep the telescoping bridge’s movement smooth, even when carrying up to 2,000 pounds.

  • Mixed Capacity Systems: Leverage system capability by specifying heavier capacity runways with multiple smaller capacity bridges. For example, a 2,000-pound capacity runway can run two 1,000-pound bridges or four 500-pound bridges.

  • Tractor Drives: Motorize the bridge or hoist trolley on a Spanco Workstation Bridge Crane. Frequently used for loads of 1,000-pounds or more, tractor drives are very helpful when transporting material into hard-to-reach areas where manual movement is difficult due to machinery, work tables, or other obstacles.

  • Bridge Buffers: The buffers roll in the runway tracks between two bridges, which prevent the bridges from overloading the runway’s capacity.

  • Intermediate Bumpers: Through-bolted end stops installed at runway support centers prevent more than one bridge crane from operating within a set of support centers.

  • Double-Girder Nested Trolleys (Crab Trolleys): Increasing the available lift height for low headroom applications, double-girder nested trolleys keep the hoist nested between dual girders, which form a box-shaped assembly that rises above a parallel set of connected bridges.

  • Box Track: Festooning cables and hoses run in their own box track, typically positioned above the runway or bridge.

  • Duct-O-Bar™ Electrical Connections: An alternative to festooning cable is the Duct-O-Bar 4-conductor electrical solid bar and brushes in conduit, which runs adjacent to enclosed track on runways or bridges.

Components

  • End Stop Bumper: Resilient rubber bumpers increase impact resistance and are through-bolted to enclosed track.

  • Cable/Hose Trolley: Conveys flat cable power supply or round air hose. Four wheels ensure easy rolling. Pivoting clevis provides swivelling action for air hose. Standard trolley includes 3/8-inch maximum air hose.

  • Festoon Section: Through-bolted on end of runway to allow stack-up of cable/hose trolleys. If festooning is a potential obstruction, use the Box Track and Duct-O-Bar alternatives outlined under the Bridge Crane Options.

  • End Truck: Smooth running connection between enclosed track bridge crane and runway tracks. Horizontal steel guide rollers on either end of the truck eliminate “crabbing action.”*

  • Hoist Trolley: Fabricated from precision-cut steel plate.*

  • Cable/Hose Clamps: Fitted at one end of runway and bridge. Flat cable 4 wire #14 AWG standard; 3/8-inch air hose optional.

  • Hanger Assemblies:

    • Ceiling-Mounted Systems: Either flush mounted or drop-rod mounted with hanger rods. Includes clamps.
    • Freestanding Systems: Flush-mount hangers; allow lateral and longitudinal adjustments.
  • Flat Cable Festooning Systems (4 wires #14 AWG): Supplied with all bridge crane systems; optional air hose systems available for various sizes. Festoon loops are 18 inches for bridges and 36 inches for runways.

  • Vacuum Hose Trolley: Free-moving trolleys with anti-kick-up rollers and Velcro strap for festoon vacuum hose on vacuum lifters.

*End trucks and hoist trolleys are: Designed to ANSI B30.11 specifications for underhung bridge cranes. Both have large diameter, polyamide wheels equipped with anti-friction ball bearings. Steel wheels, zinc chromate plated finish, or bronze wheels with bronze guide rollers for “spark resistant” applications are available.

Enclosed Track Workstation Crane

Freestanding Workstation Crane

OPTIONS AND COMPONENTS

  • Telescoping Bridges: Providing extended crane reach, telescoping bridges allow you to place parts easily into machinery or into a neighbouring workstation. Telescopic bridge cranes also enable you to reach beyond a support column or under a mezzanine. Anti-kick-up wheels keep the telescoping bridge’s movement smooth, even when carrying up to 2,000 pounds.

  • Mixed Capacity Systems: Leverage system capability by specifying heavier capacity runways with multiple smaller capacity bridges. For example, a 2,000-pound capacity runway can run two 1,000-pound bridges or four 500-pound bridges.

  • Tractor Drives: Motorize the bridge or hoist trolley on a Spanco Workstation Bridge Crane. Frequently used for loads of 1,000-pounds or more, tractor drives are very helpful when transporting material into hard-to-reach areas where manual movement is difficult due to machinery, work tables, or other obstacles.

  • Bridge Buffers: The buffers roll in the runway tracks between two bridges, which prevent the bridges from overloading the runway’s capacity.

  • Intermediate Bumpers: Through-bolted end stops installed at runway support centers prevent more than one bridge crane from operating within a set of support centers.

  • Double-Girder Nested Trolleys (Crab Trolleys): Increasing the available lift height for low headroom applications, double-girder nested trolleys keep the hoist nested between dual girders, which form a box-shaped assembly that rises above a parallel set of connected bridges.

  • Box Track: Festooning cables and hoses run in their own box track, typically positioned above the runway or bridge.

  • Duct-O-Bar™ Electrical Connections: An alternative to festooning cable is the Duct-O-Bar 4-conductor electrical solid bar and brushes in conduit, which runs adjacent to enclosed track on runways or bridges.

Components

  • End Stop Bumper: Resilient rubber bumpers increase impact resistance and are through-bolted to enclosed track.

  • Cable/Hose Trolley: Conveys flat cable power supply or round air hose. Four wheels ensure easy rolling. Pivoting clevis provides swivelling action for air hose. Standard trolley includes 3/8-inch maximum air hose.

  • Festoon Section: Through-bolted on end of runway to allow stack-up of cable/hose trolleys. If festooning is a potential obstruction, use the Box Track and Duct-O-Bar alternatives outlined under the Bridge Crane Options.

  • End Truck: Smooth running connection between enclosed track bridge crane and runway tracks. Horizontal steel guide rollers on either end of the truck eliminate “crabbing action.”*

  • Hoist Trolley: Fabricated from precision-cut steel plate.*

  • Cable/Hose Clamps: Fitted at one end of runway and bridge. Flat cable 4 wire #14 AWG standard; 3/8-inch air hose optional.

  • Hanger Assemblies:

    • Freestanding Systems: Flush-mount hangers; allow lateral and longitudinal adjustments.
    • Ceiling-Mounted Systems: Either flush mounted or drop-rod mounted with hanger rods. Includes clamps.
  • Flat Cable Festooning Systems (4 wires #14 AWG): Supplied with all bridge crane systems; optional air hose systems available for various sizes. Festoon loops are 18 inches for bridges and 36 inches for runways.

  • Vacuum Hose Trolley: Free-moving trolleys with anti-kick-up rollers and Velcro strap for festoon vacuum hose on vacuum lifters.

*End trucks and hoist trolleys are: Designed to ANSI B30.11 specifications for underhung bridge cranes. Both have large diameter, polyamide wheels equipped with anti-friction ball bearings. Steel wheels, zinc chromate plated finish, or bronze wheels with bronze guide rollers for “spark resistant” applications are available.
