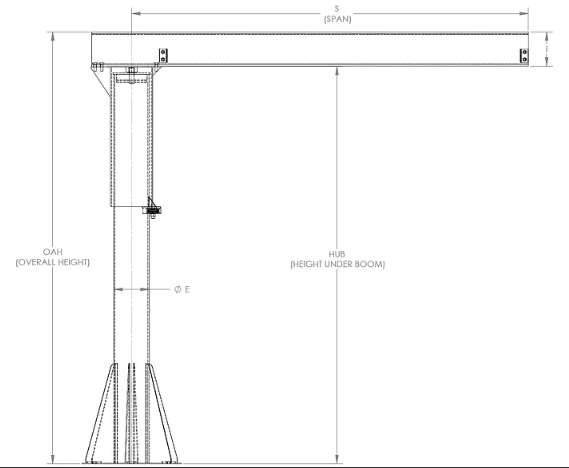

Light Duty Freestanding Jib Crane

Model 350/350F

The light-duty pillar base mounted jib crane solution is economical and ideal for processes involving light assembly, welding, or any application where capacity and use are low. The self-supporting 360-degree rotating jib design mounts to the floor using our engineered anchor bolts and recommended foundation or existing floor based on the jib crane’s specifications.

CAPACITIES & SPANS

  • Capacities up to 1 ton with
  • Standard Span/Heights up to 14 feet.
  • Custom heights and spans available.

ROTATION

  • 360 degree rotation is standard

FEATURES & BENEFITS

  • Economical pipe over pipe design
  • Full plate style gussets for maximum load distribution
  • FOUNDATIONLESS MOUNTING AVAILABLE
  • PORTABLE BASE JIBS AVAILABLE

OPTIONS & ACCCESSORIES

  • Tight Wire Kit (Festooning/”Tagline”)
  • Rotation Stops
  • Outdoor Application
  • Hoist & Trolley Packages
  • Template and Anchor Bolts
  • No Load Parking Device
  • Epoxy Anchoring System for foundationless mounting

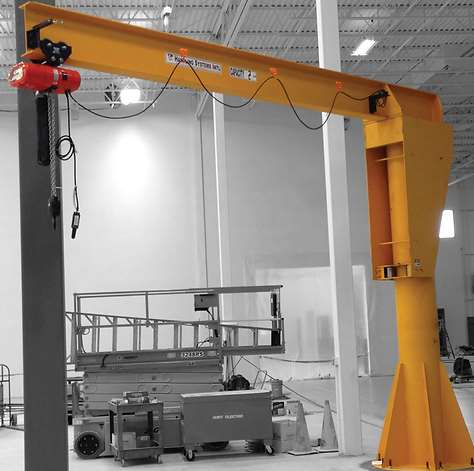

Light Duty Freestanding Jib Crane

Model 351/351F

The HEAVY DUTY pillar base mounted jib crane is built to last, and is ideal for processes that involve heavy lifting and constant use throughout the day. This self-supporting 360-degree rotating jib crane is fully customizable, and mounts to the floor using our anchor bolts and recommended foundation.

CAPACITIES & SPANS

  • Capacities up to 15 ton
  • Standard Span/Heights up to 30+ feet
  • Custom heights and spans available.

ROTATION

  • 360 degree rotation is standard

FEATURES & BENEFITS

  • Heavy Duty assembly with reinforcing side plates
  • Full plate style gussets for maximum load distribution
  • Heavy duty top thrust bearing with pressure fitted housing for ese of rotation
  • Heavy Duty roller cage that is built to last; steel rollers with low friction bearings, adjustable tension bolts, keeper bar, and zerk fittings
  • Built with safety in mind; anti-tip angles to prevent head renoval from accidental impact and space rods to prevent head assembly plate flexing

MOTORIZED ROTATION AVAILABLE

  • Electic or Air powered
  • Reduce injuries and create efficiency
  • Hand¬† geared rotation available

OPTIONS & ACCCESSORIES

  • Tight Wire Kit (Festooning/”Tagline”)
  • CTrack Flat Cable Festooning
  • Rotation Stops
  • Outdoor Application
  • Hoist & Trolley Packages
  • Template and Anchor Bolts
