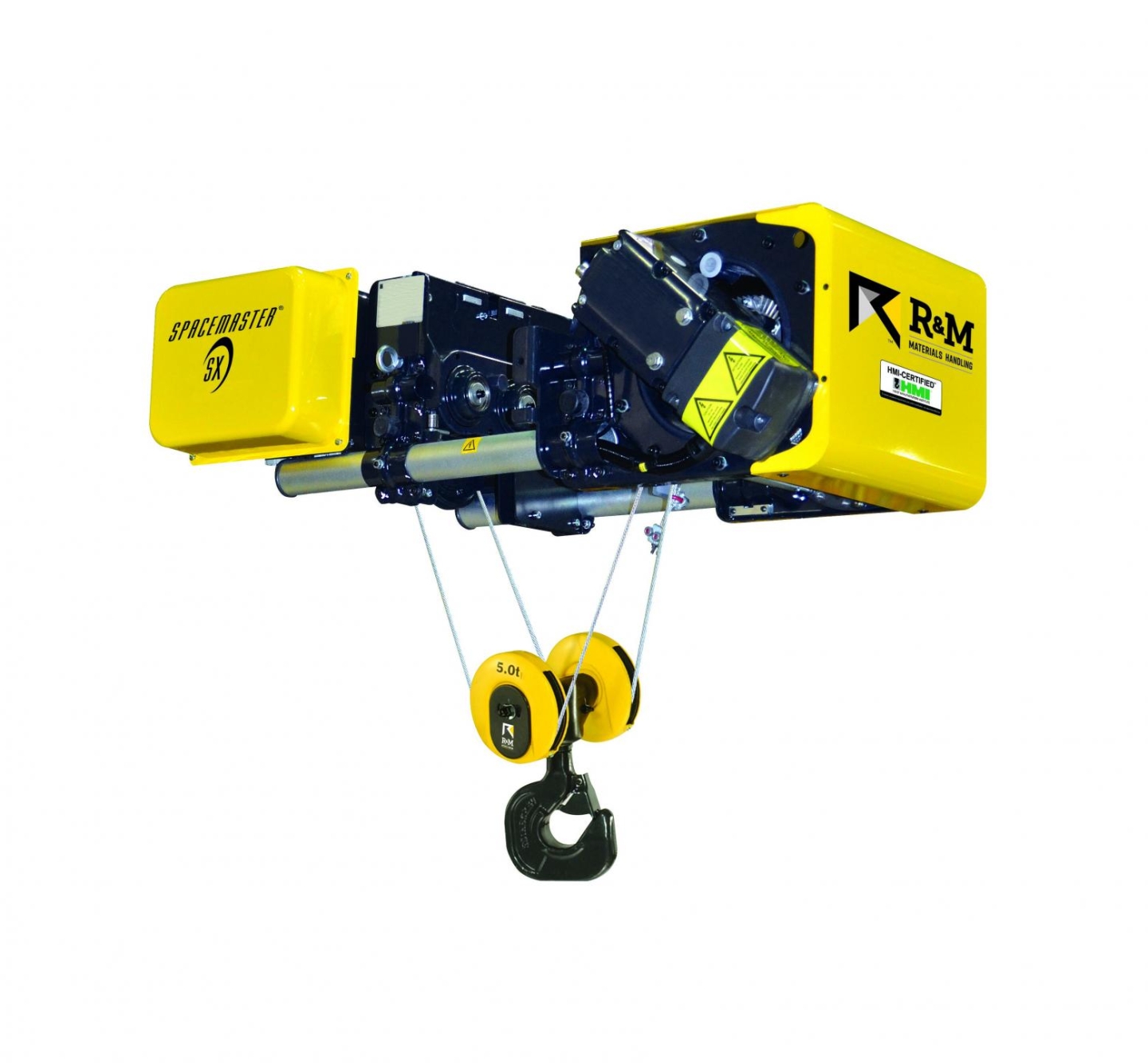

Wire Rope Hoists

Experience the power and reliability of Wire Rope Hoists, designed to meet the challenges of your everyday business operations. These hoists feature a large drum diameter that enables near true vertical lift and a frame design that allows for close approaches. With capacities ranging from 0.5 to 80 tons and lifting distances from 13 to 320 ft, the Wire Rope Hoists offers exceptional performance. They come in standard electric configurations, including normal headroom, low headroom, and double girder models.

Designed to maximize operational efficiency, Wire Rope Hoists are ideal for various applications across industries. These hoists offer easy operation with excellent headroom, minimized hook drift, and increased end approaches. Additionally, the innovative gear case design reduces stress on drum bearings, resulting in lower maintenance needs and extended equipment lifespan. Trust in the reliability and performance of Wire Rope Hoists for your lifting requirements.

Description

Highlighted Features:

  • Capacities ranging from 0.5 to 80 tons (500 – 80,000 kg).
  • Lifts at distances from 13 to 320 ft (4 – 100 m).
  • Lifting speed range of 10/1.5 to 62/10 fpm (3/0.5 – 19/3 mpm).
  • Power supply options of 208, 230, 460, 575/3/60 or 380/3/50.
  • Single-reeved or double-reeved configurations available.
  • Load monitoring for enhanced safety.
  • 2-speed hoisting and inverter-controlled trolley motions for improved performance and extended equipment life.
