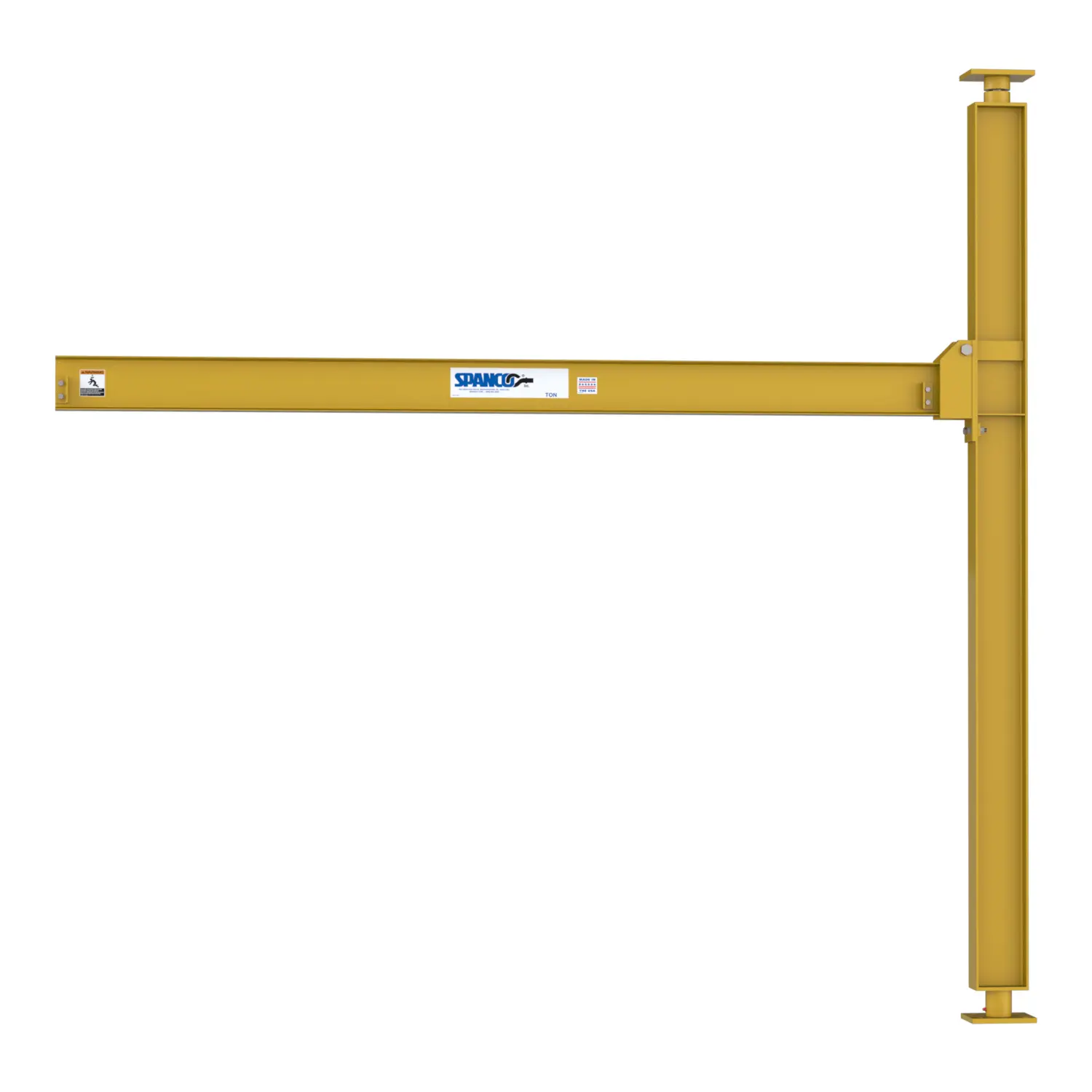

MAST-STYLE JIB CRANES – DROP CANTILEVER – 201 SERIES

  • Crane Rotation: 360°
  • Capacities: up to 5 tons on standard models; up to 10 tons custom
  • Spans: up to 20’ standard; up to 40’ custom
  • Heights: up to 20’ standard; up to 40’ custom (distance from floor to overhead support)

Spanco Mast-Style Jib Cranes provide 360-degree crane rotation and can be rotated manually or by power. They bolt to floor and building’s steel beams, eliminating costly special foundations. The drop cantilever 201-Series uses side-plate connections to permanently “drop mount” the boom at any specified height on the mast. Drop cantilever booms allow for clearance from overhead obstructions that are located below the top of the mast.

Category:

Description

Spanco Mast-Style Jib Cranes provide full 360-degree rotation while eliminating the cost of a special foundation, which can cost more than the crane.

As a lower cost alternative to freestanding jib cranes, these full-feature mast-style cranes:

  • Are bolted to the floor and existing overhead support structure (e.g., steel beams)
  • Require no special foundation, but only a standard 6-inch reinforced concrete floor
  • Are available with power rotation on all models

Mast-Style Jib Crane Features

  • Uses wide-flange beam or I-beam for the boom and a wide-flange beam for the column
  • The top assembly has self-aligning spherical bearings
  • The bottom assembly has bronze bearings and bronze thrust washers
  • Both bearing assemblies are provided with grease fittings for lubrication to aid rotation
