SINGLE LEG GANTRY CRANES

Excellent Alternative to Expensive Overhead Cranes

Spanco Semi Gantry Cranes offer high capacity, high height, economical lifting solutions when:

  • Your plant has been “making do” with multiple forklifts; coordinating too many lifts, especially on heavy or very long loads, is unsafe, inefficient, and time consuming
  • Your lifting volume is moderate and can’t justify more expensive, permanently installed cranes
  • You need an economical, versatile lifting system to supplement your existing overhead cranes

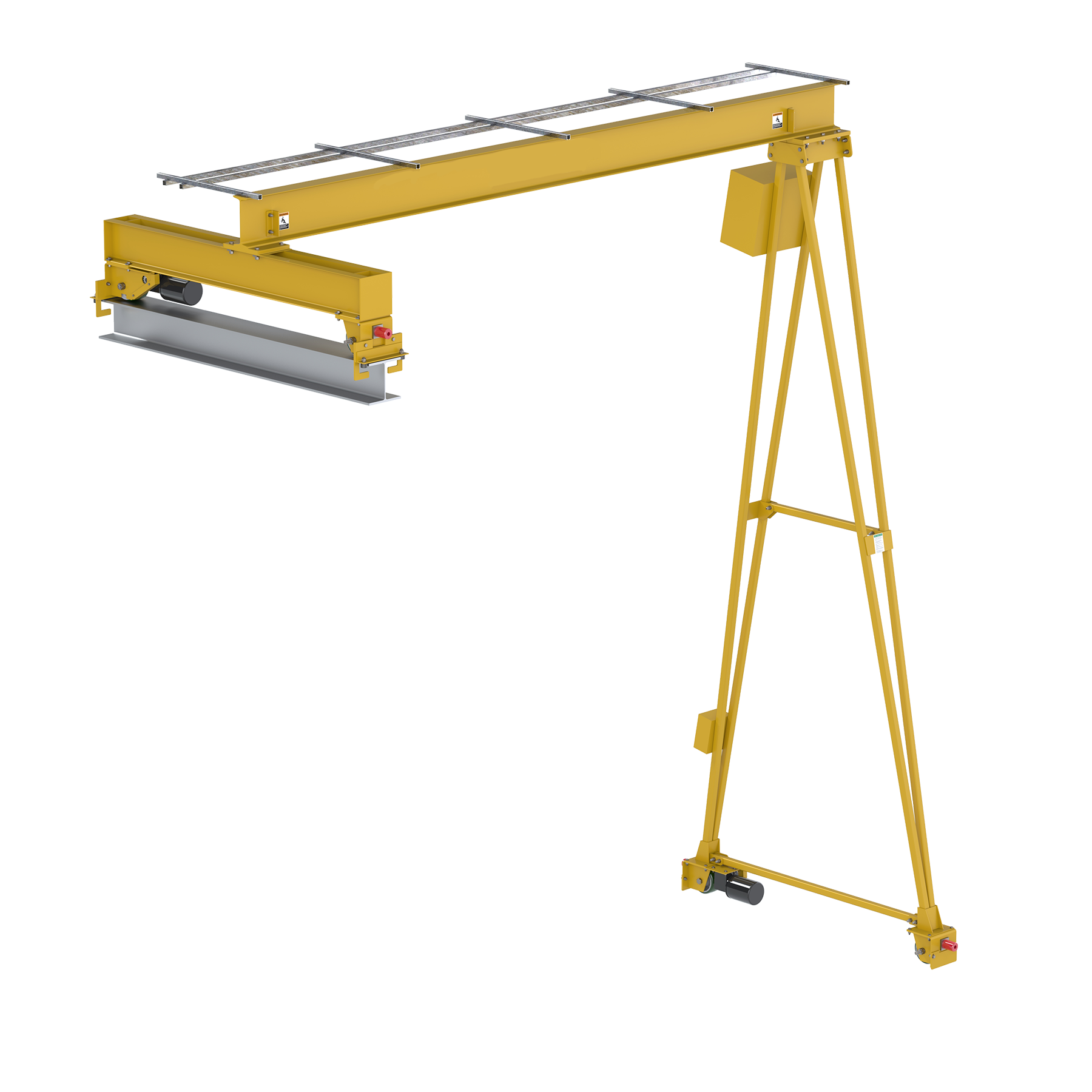

Our single leg crane (also known as a “semi gantry”) maximizes your space utilization. One leg end moves over the floor on wheels while the other end runs overhead on a wall-mounted I-beam using one of two end truck designs:

Top-Running End Truck: The end of the gantry’s I-beam mounts onto an end truck that travels on the top side of an overhead runway beam

Description

  • Semi-Gantry Capacities: up to 15 tons
  • Height under Beam: up to 35’
  • Spans: up to 40’

Spanco Single Leg Gantry Cranes provide material handling solutions in plants that cannot fit a PF-Series Gantry due to narrow, confined spaces or crowded machinery.
